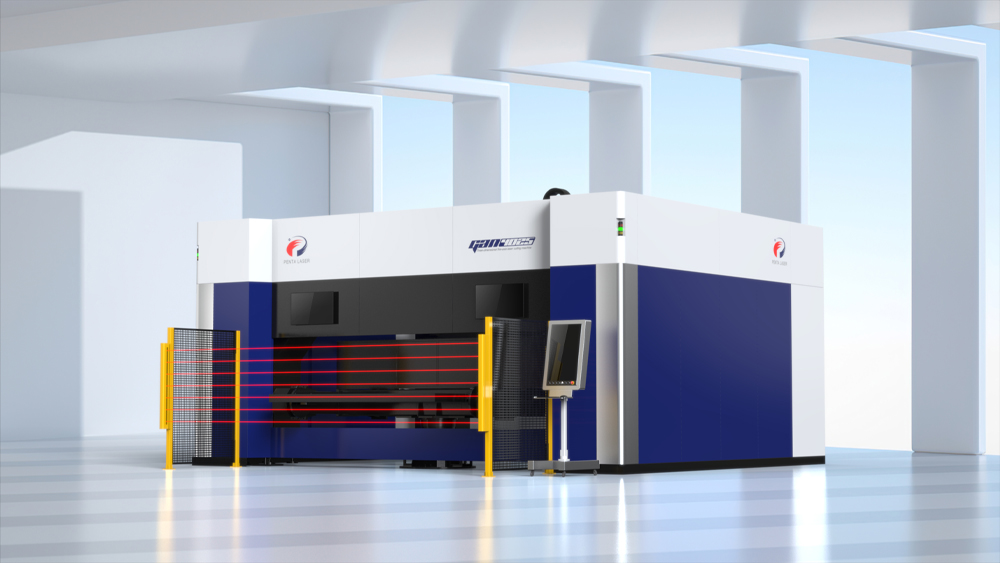

GAN Series 3D laser cutting machine

The GAN series 3D laser cutting machine is suitable for precise cutting of various complex-shaped workpieces. It can be applied to cutting and processing of metal materials such as steel, aluminum, and copper. It is widely used in industries such as automotive manufacturing, aerospace, electronics, and mold making. It can be used for cutting body panels, parts, molds, decorations, etc. The 3D five-axis laser cutting machine has the characteristics of high precision, high efficiency, and strong flexibility, and can meet the cutting requirements of complex workpieces.

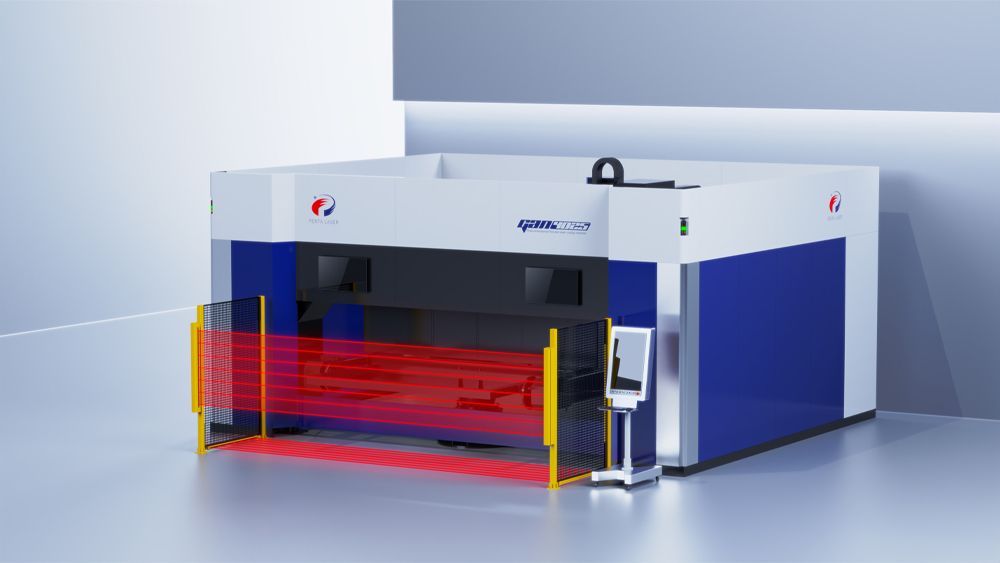

Safety light grating

Safety interlock protective door, enabling enclosed operations, intelligent safety light curtain to prevent personnel from inadvertently entering.

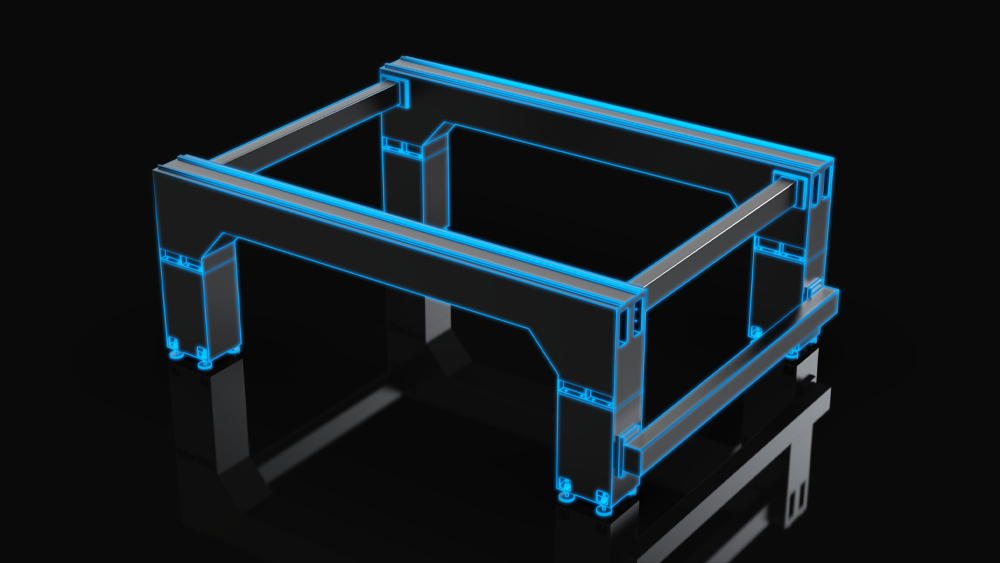

Dynamic performance

The high-strength crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation. The Maximum speed of linear axis can reach 100m/min, and the acceleration can reach 1G.

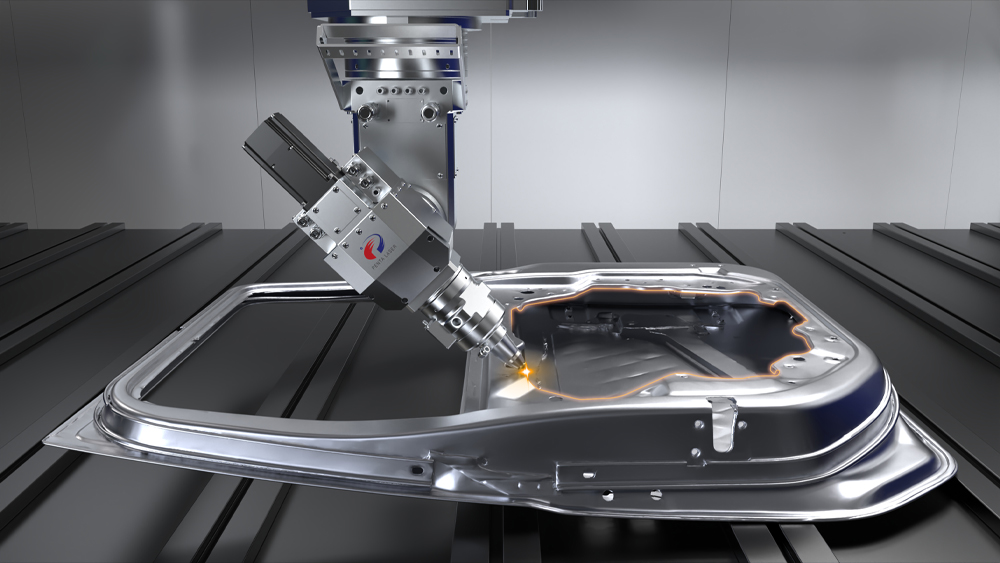

Five-axis linkage cutting head

The five-axis linkage cutting head can achieve N*360° rotation and ±135° swing, enabling it to rotate from one plane to another.

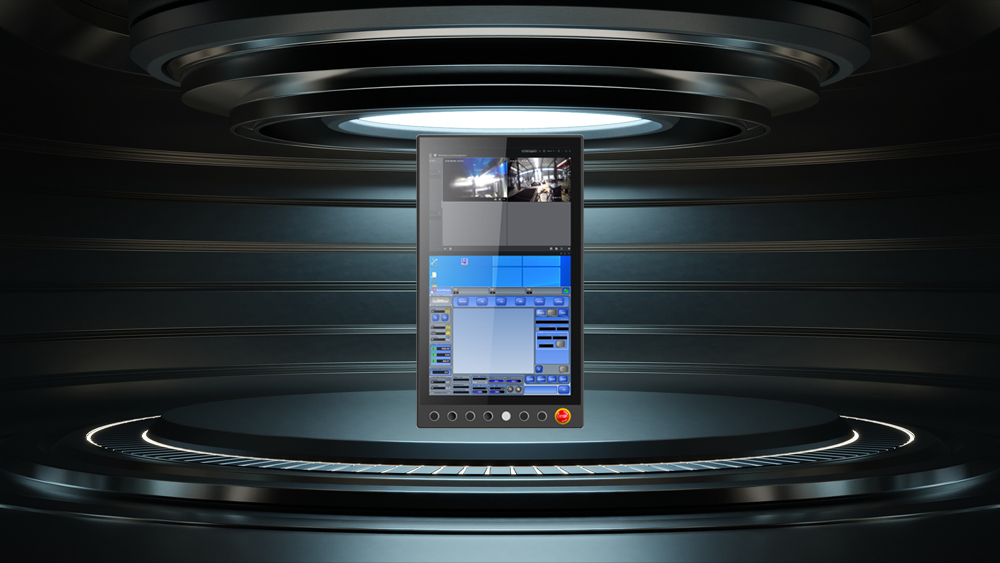

Operation software

■The latest version of Smart Manager is an European CNC software that can integrate with Italian CNC systems. Equipped with a powerful laser cutting database, the laser cutting parameters can be adjusted in real-time to achieve optimal cutting quality.

■The new algorithm enables faster response.

■It can be set with 15 layers of cutting parameters and 25 layers of perforation methods.

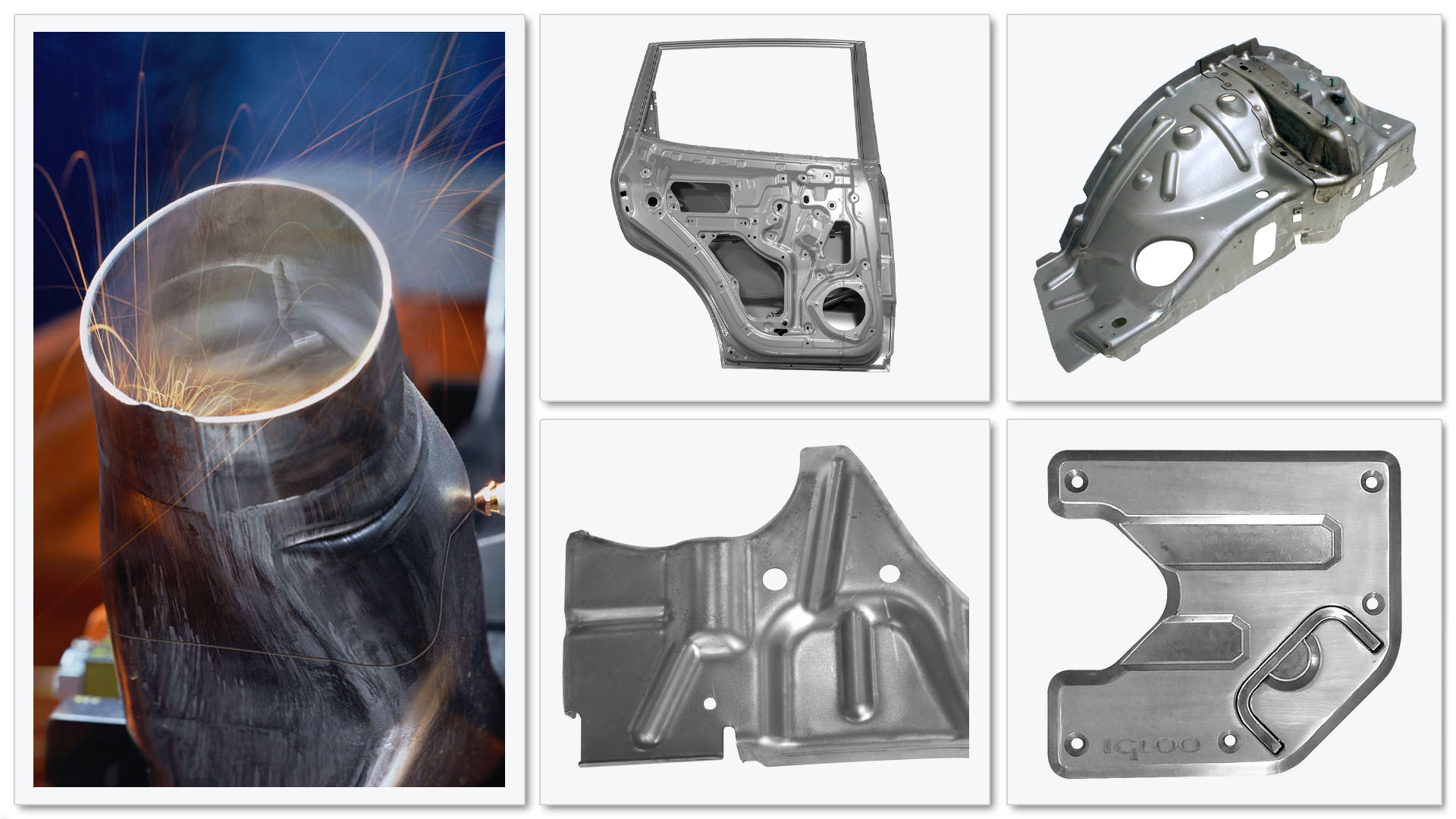

Cutting sample

Certificate
