The SEA HORSE 26100 series is a powerful、easy-to-operate and can cut a maximum length of 26 meters H-beam laser cutting machine.
Model :
Sea horse 26100Table Travel :
（200-1000）mm×260000mmB-axis Rotation angle :
±90°C-axis Rotation angle :
±45°Straight axis positioning accuracy :
±0.05mmStraight axis re-positioning accuracy :
±0.02mmRepetitive accuracy ofrotate axis position :
8arc minLaser Power Option :
2000-20000WOperating system :

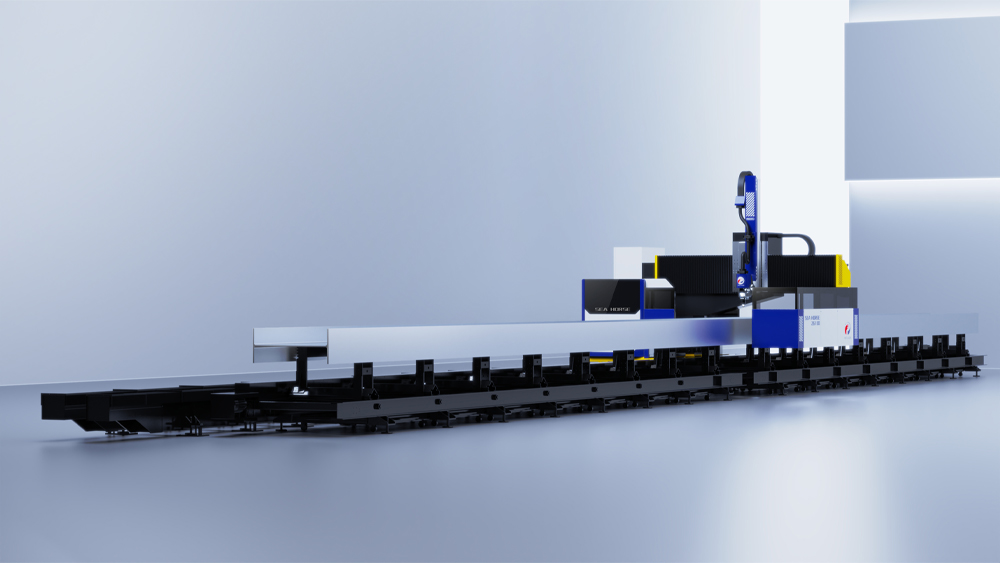

Smart managerSea horse 26100 H-beam laser cutting machine
The SEA HORSE 26100 series is a powerful、easy-to-operate H-beam laser cutting machine. It can process beams with a maximum length of 26 meters, making it particularly suitable for the processing needs of industries such as construction, bridges, automobiles, and ships. It can improve production efficiency, reduce costs, and provide better cutting quality, making it have great market potential.

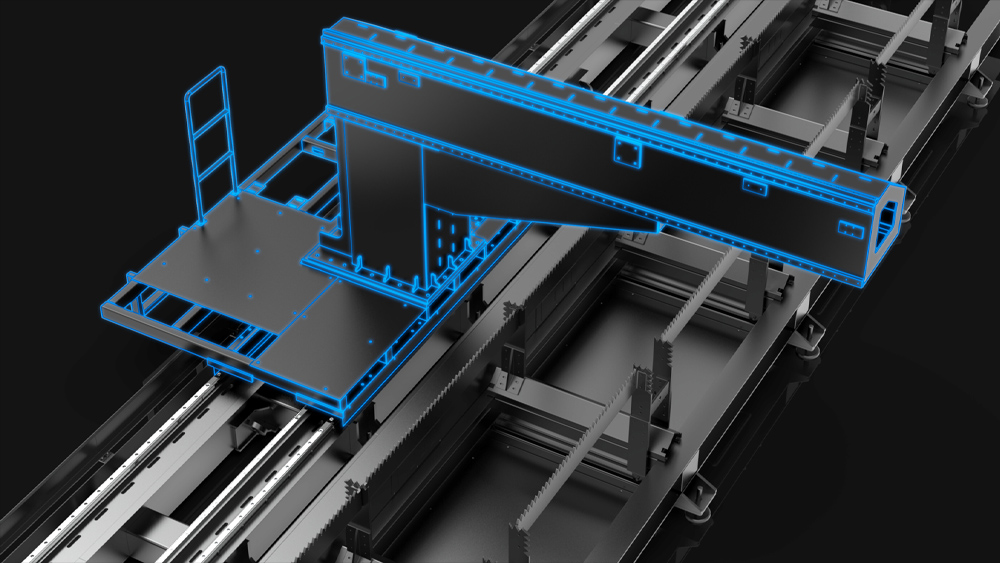

Dynamic performance
The high-strength crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation. The Maximum speed of linear axis can reach 45m/min.

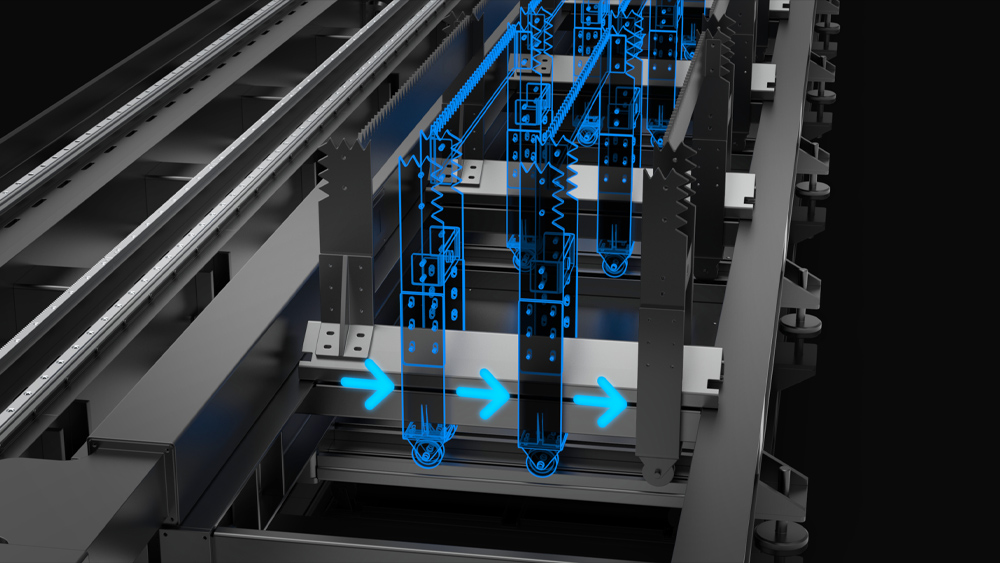

Move the rack
The design of the rack movement can meet the processing requirements for widths ranging from 400-1000mm.

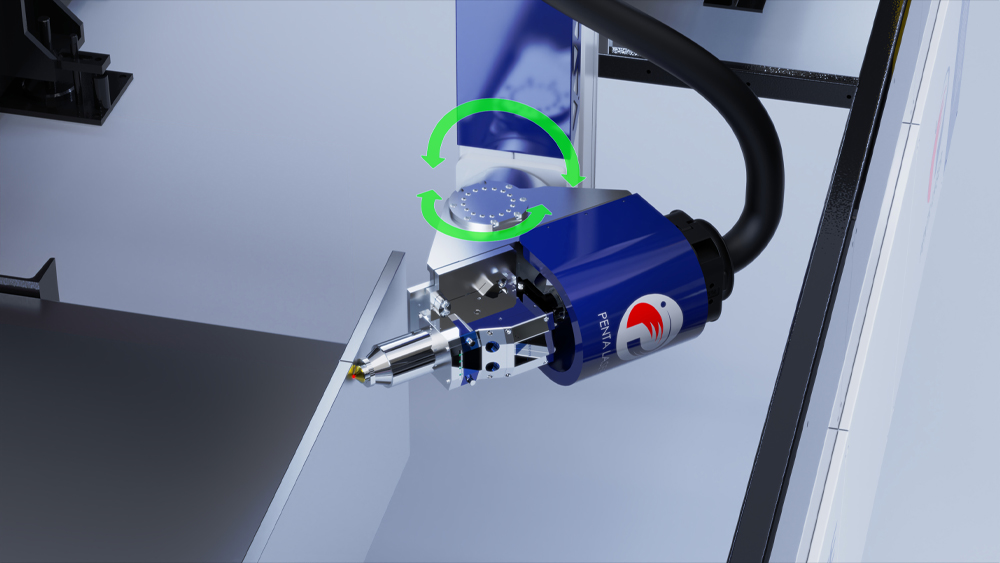

Bevel cutting
Sea horse h-beam laser cutting machine can achieve high quality bevel cuts of B axis up to ±90° and C axis up to ±45°.

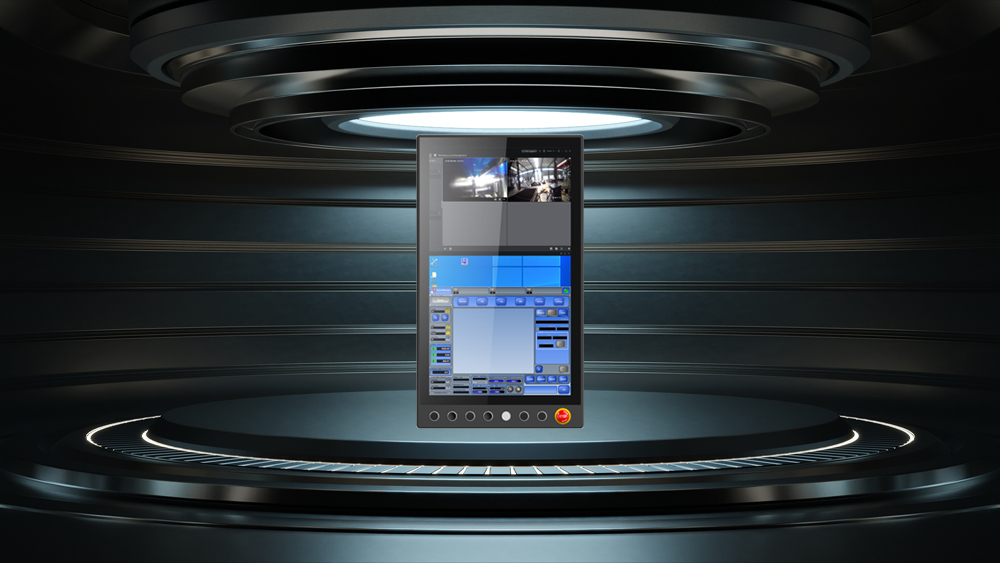

Operation software
■The latest version of Smart Manager is an European CNC software that can integrate with Italian CNC systems. Equipped with a powerful laser cutting database, the laser cutting parameters can be adjusted in real-time to achieve optimal cutting quality.
■The new algorithm enables faster response.
■It can be set with 15 layers of cutting parameters and 25 layers of perforation methods.

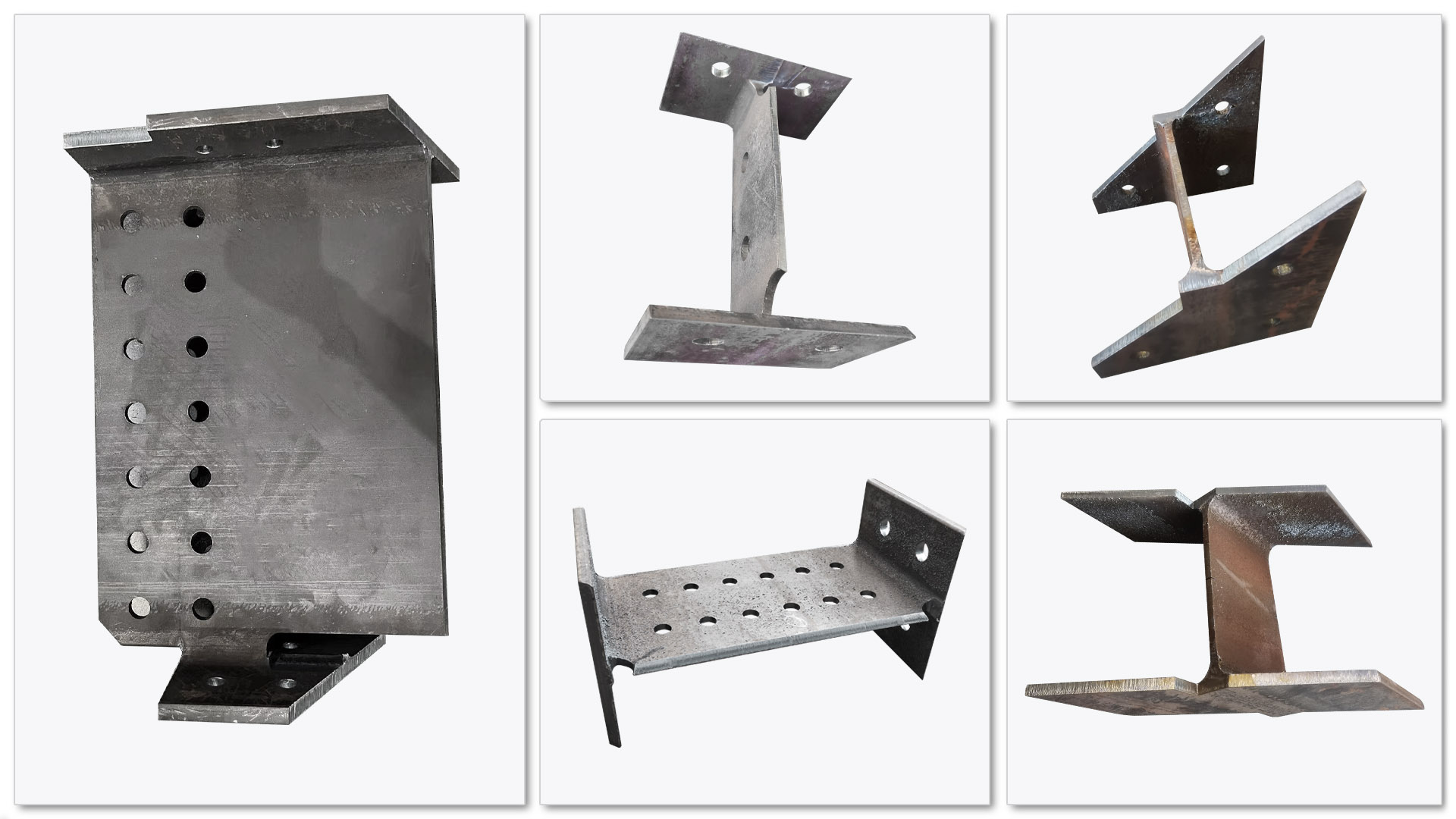

Cutting sample
Certificate
