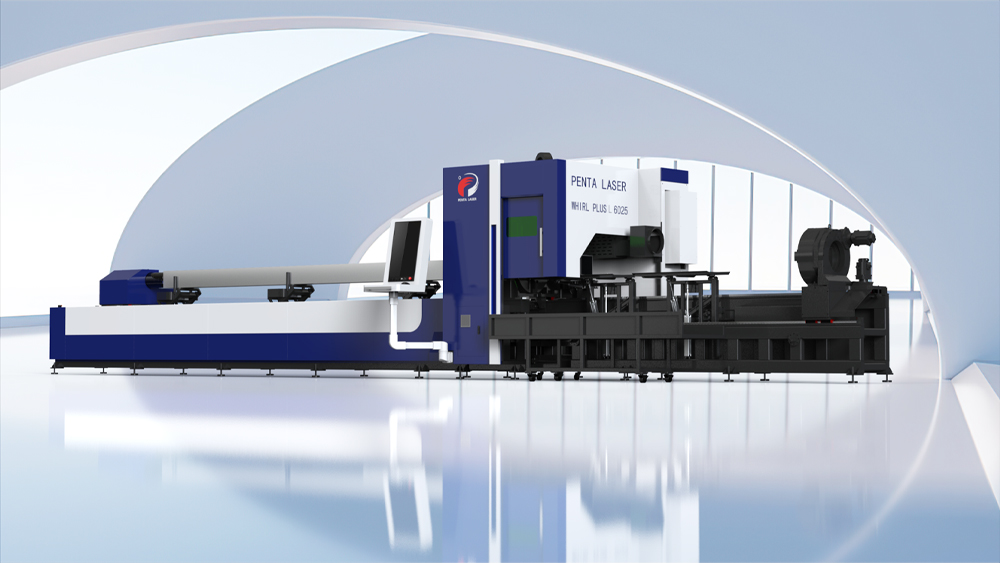

WPL Series Laser tube cutting machine

The WPL series laser tube cutting machine is a high-performance, efficient, and high-precision machine. The servo support of the loading system can automatically set the support height according to the program. The unloading system uses a flat floating support, and the square hole chuck can clamp square and round tubes with the same maximum diameter. In cutting process, waste and finished products are automatically separated, reducing the labor for receiving materials.

Feature

Dynamic performance

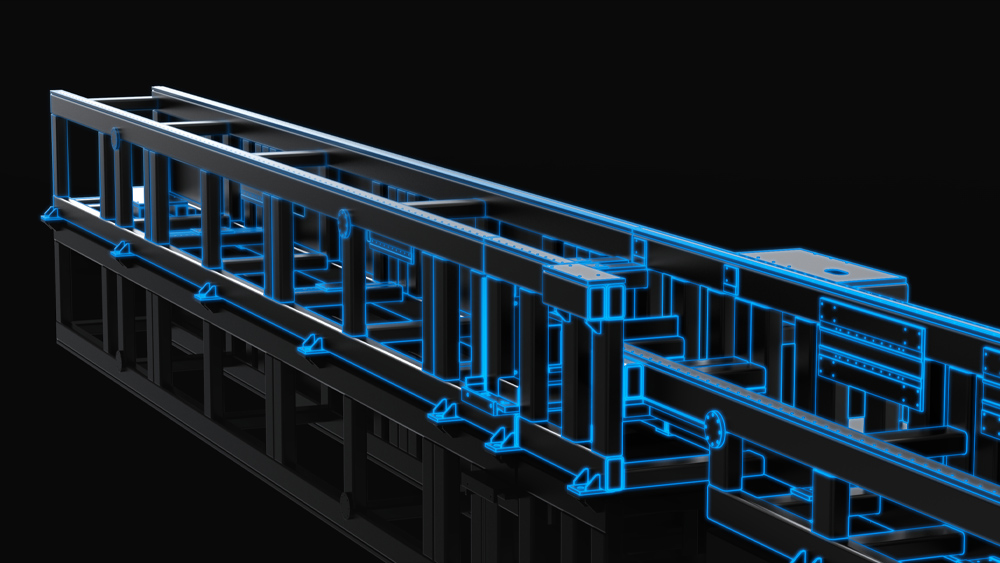

The high-strength crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation. The Maximum speed of linear axis can reach 90m/min, and the Maximum speed of axis of rotation can reach 100rpm.

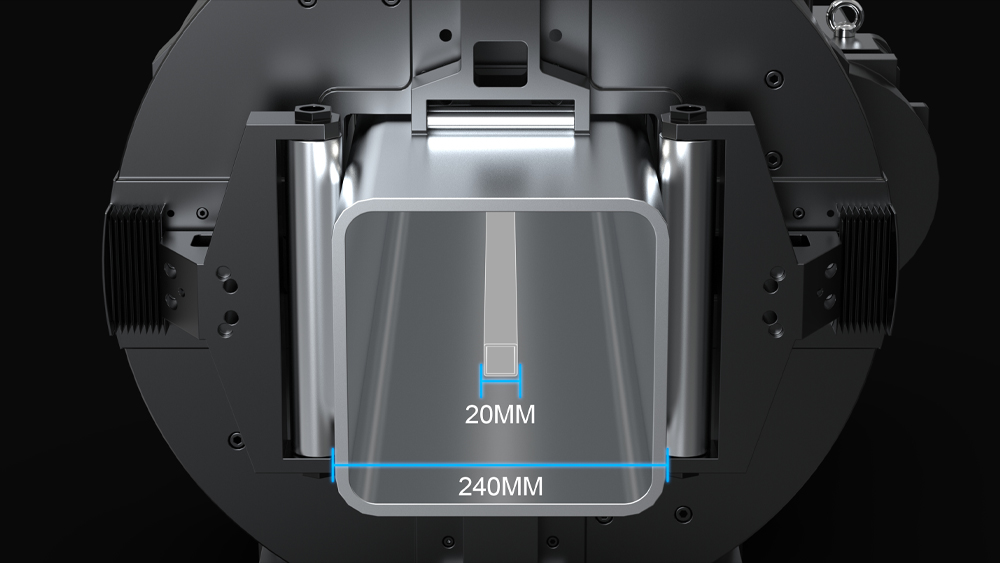

The clamping range of the Chuck

Using a square chuck, the maximum diameter for cutting round tubes is equal to the maximum diameter for cutting square tubes.The diameter ranges from 20mm to 240mm.

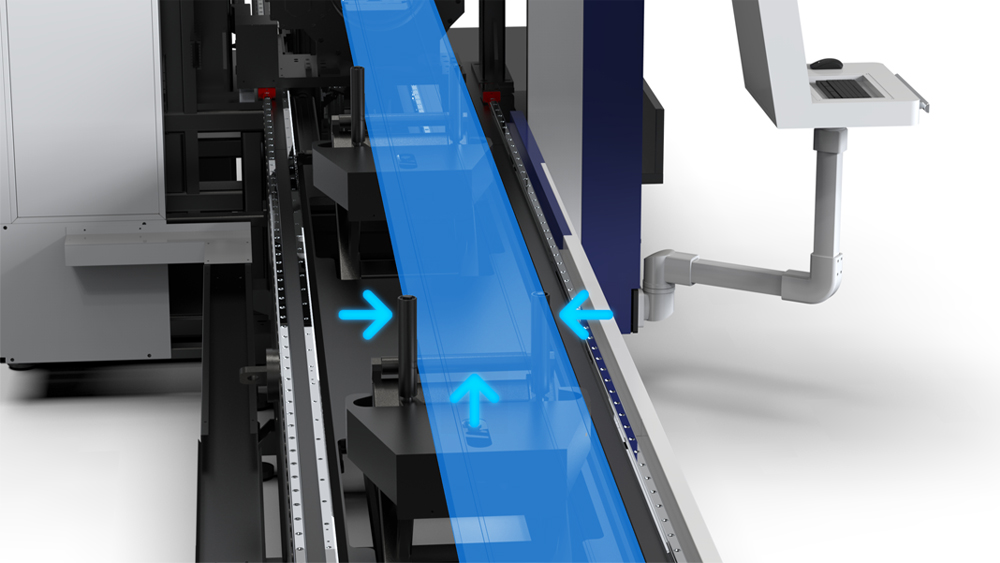

Servo support with buffer cylinder

Both the loading end and the unloading end are equipped with high-sensitivity servo-driven active support to ensure the stability of cutting and improve accuracy.

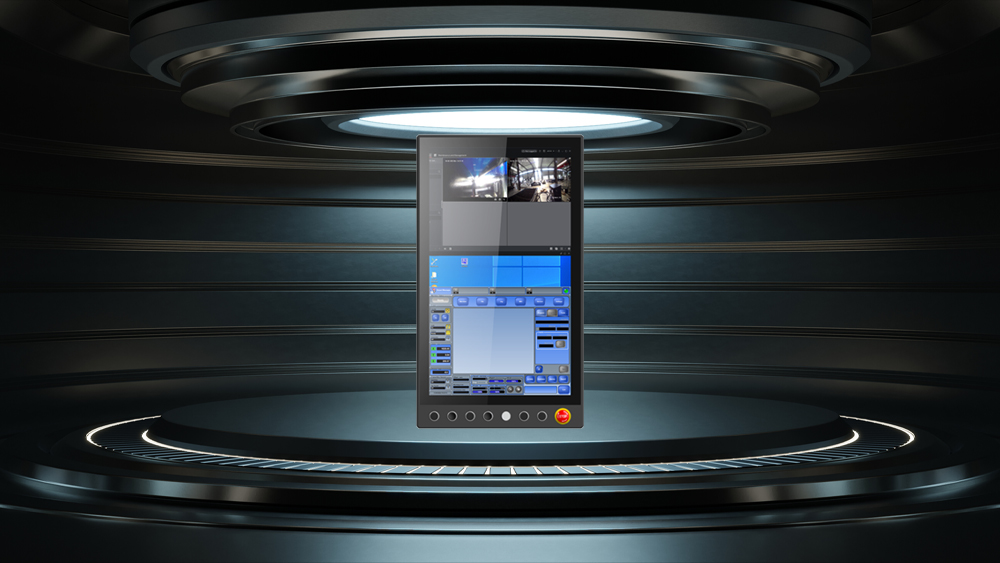

Operation software

■The latest version of Smart Manager is an European CNC software that can integrate with Italian CNC systems. Equipped with a powerful laser cutting database, the laser cutting parameters can be adjusted in real-time to achieve optimal cutting quality.

■The new algorithm enables faster response.

■It can be set with 15 layers of cutting parameters and 25 layers of perforation methods.

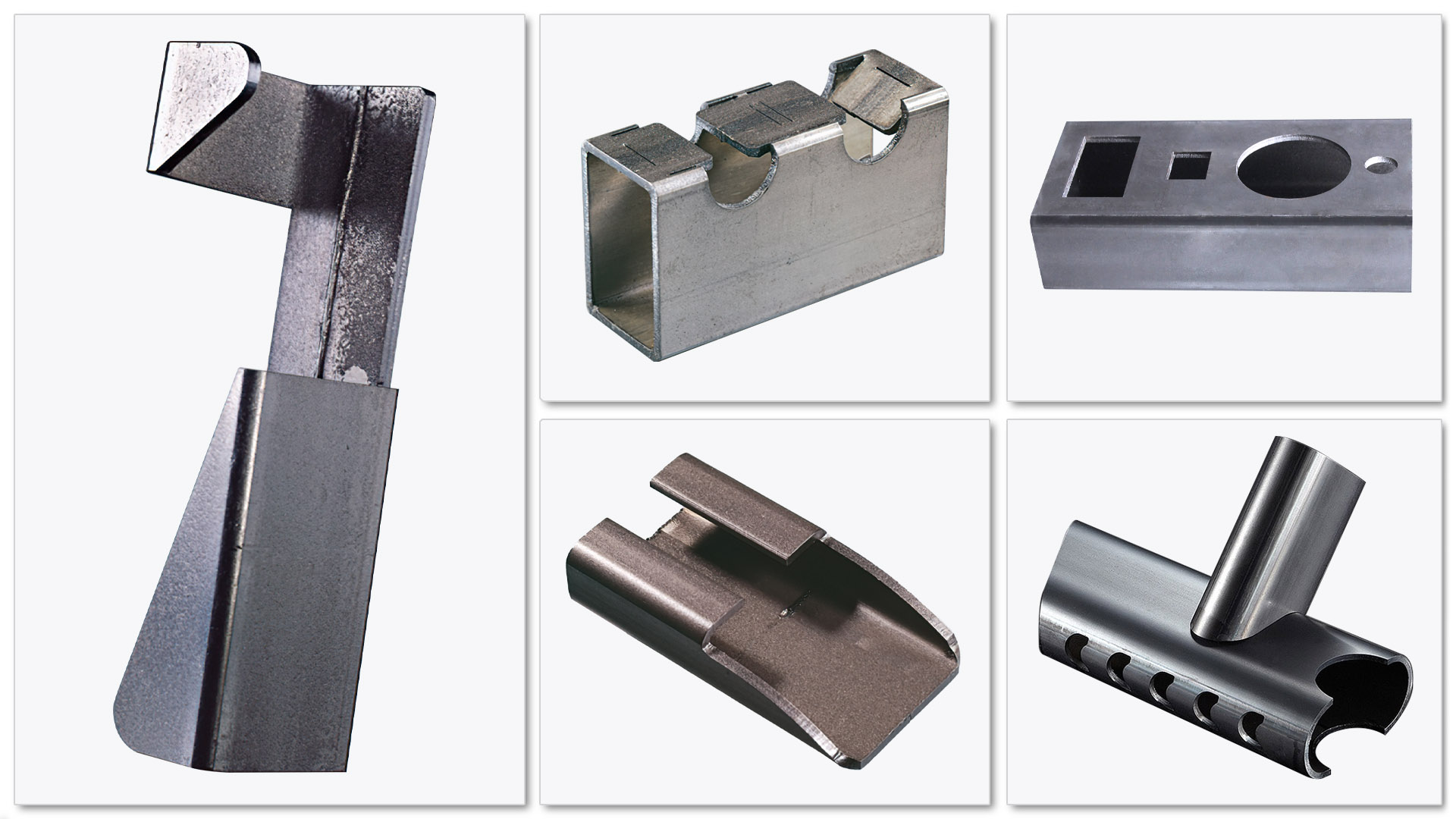

Cutting sample

Certificate
