Laser Cutting Machines

AWING VIII-01 Laser cutting machine

The AWING8-01 series is easy to operate and has strong reliability entry-level 2D laser cutting machine.

Model :
AWING VIII-01 (3015 4020 6025)
Table Travel :
1500×3000mm-2500×6000mm
Accuracy :
0.06mm
Mechanical Repeatability :
0.03mm
Rapid Speed :
120m/min
Maximum Acceleration :
1.4G
Laser Power Option :
3000-6000W
Operating system :
Smart manager

Inquiry now

product introduction

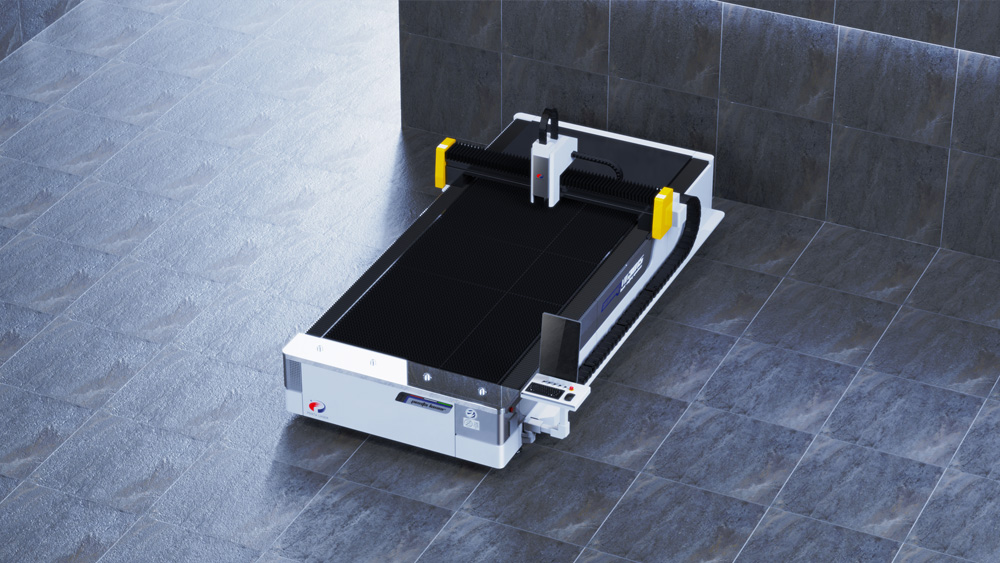

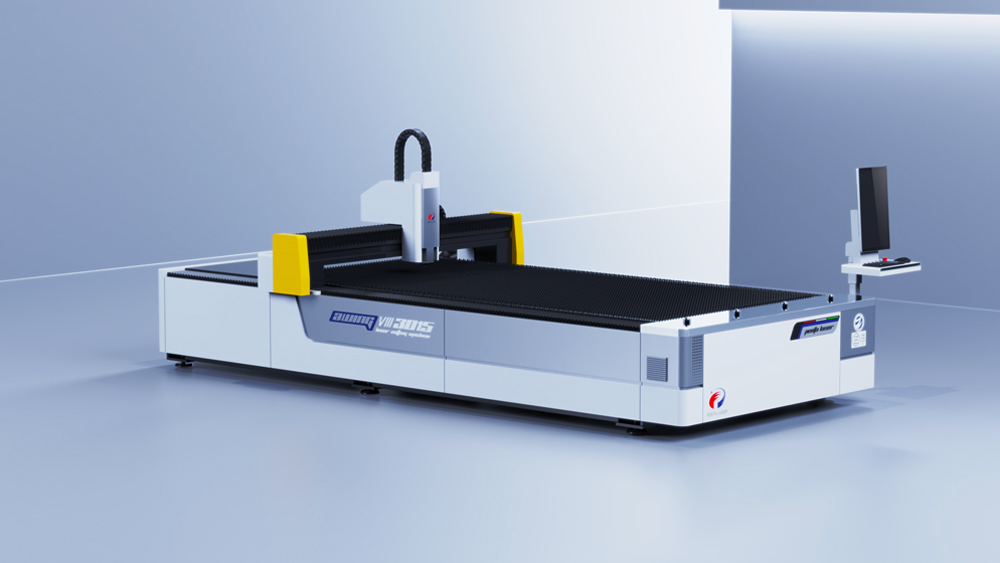

AWING VIII-01 Laser cutting machine

The AWING8 series 2D laser cutting machine is a cost-effective, entry-level machine. It is a compact model with a small footprint and can fit into standard containers. This model is suitable for industries such as sheet metal processing and mechanical manufacturing.

Feature

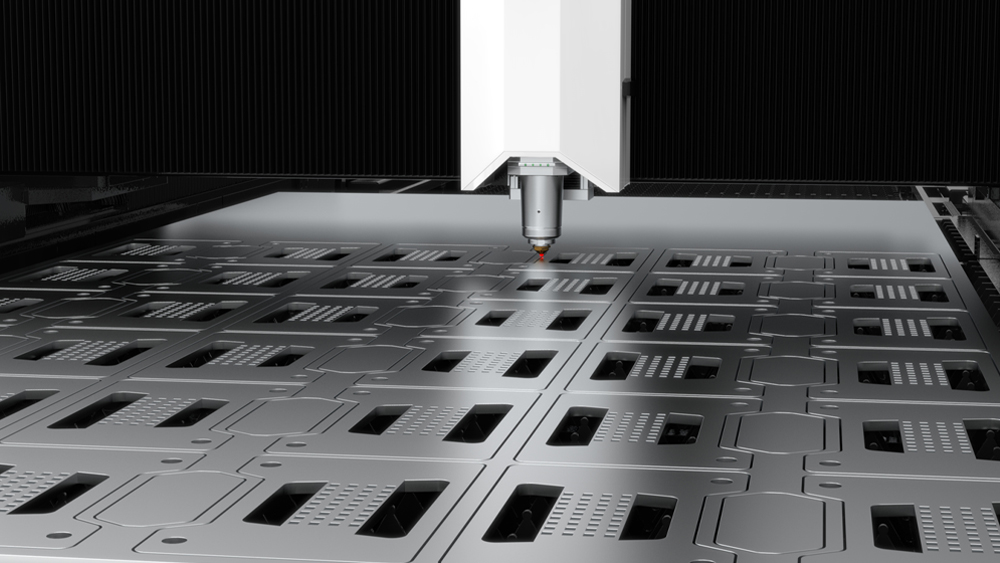

Dynamic performance

The high-strength crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation. The Maximum speed of linear axis can reach 120m/min, and the acceleration can reach 1.4G.

One-click processing

By setting processing tasks, one-click startup is enabled to accomplish automatic exchange, automatic edge detection, and automatic cutting, thus enhancing the processing efficiency of the equipment.

40HQ Standard Container Transport

The machine is shipped in a 40HQ standard container, saving overseas freight for customers.

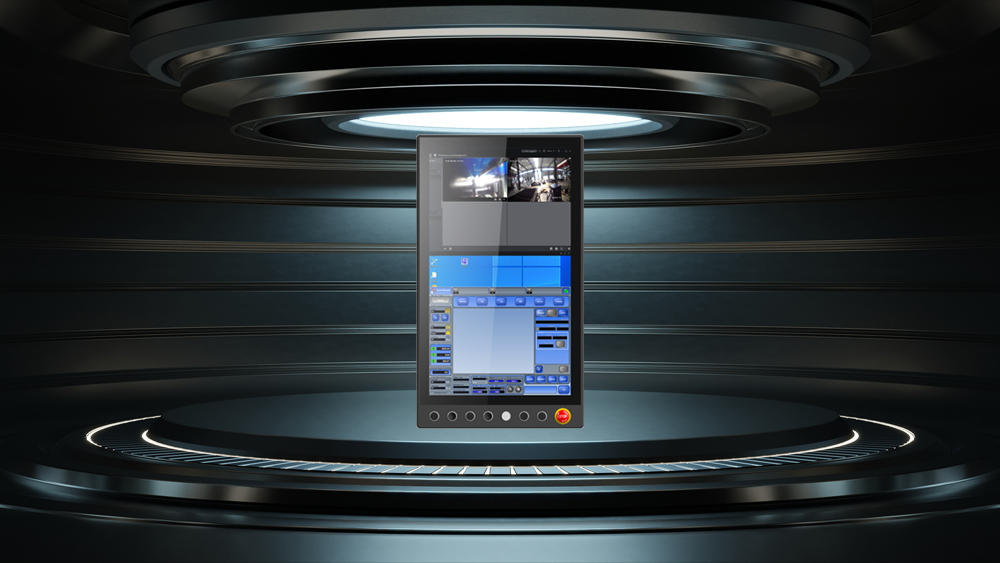

Operation software

■The latest version of Smart Manager is an European CNC software that can integrate with Italian CNC systems. Equipped with a powerful laser cutting database, the laser cutting parameters can be adjusted in real-time to achieve optimal cutting quality.

■The new algorithm enables faster response.

■It can be set with 15 layers of cutting parameters and 25 layers of perforation methods.
